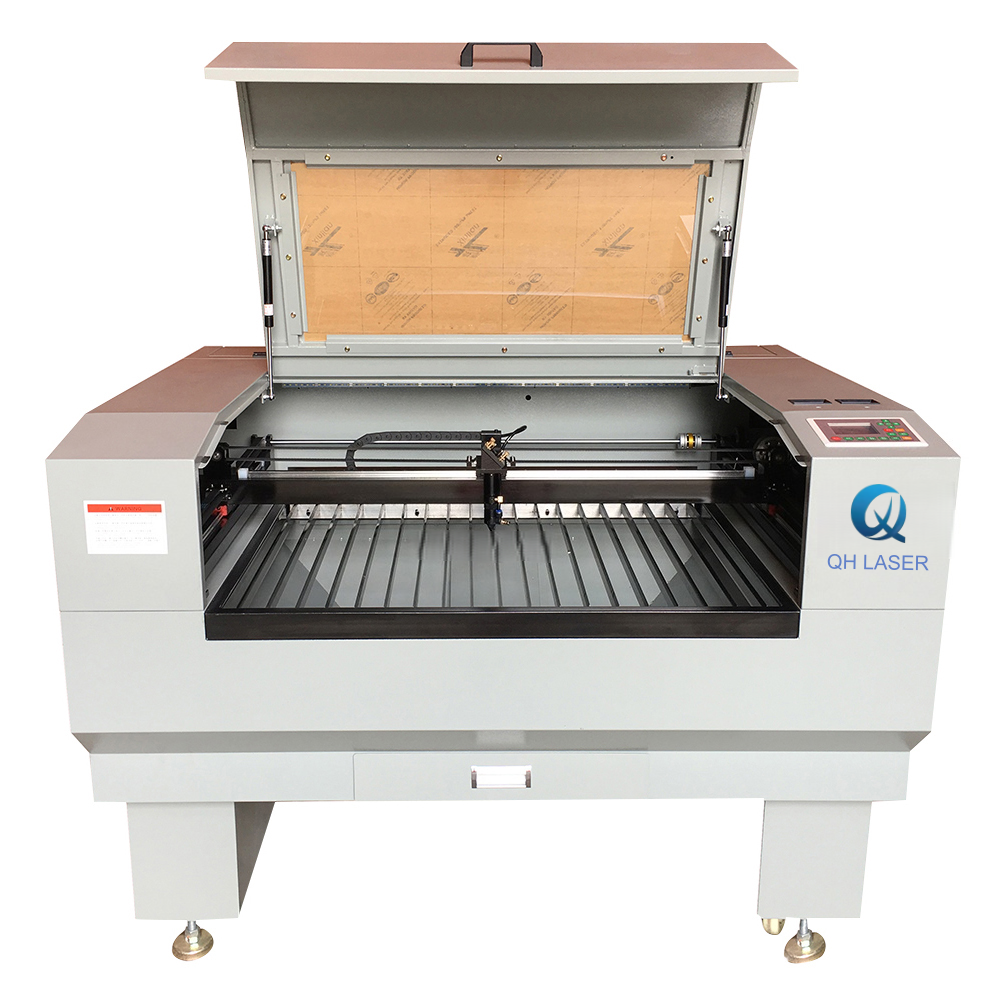

QH-9060C CO2 Laser Cutting Machine
Description
The QH-9060C is a versatile CO₂ laser cutting & engraving machine optimized for precision processing of non-metallic materials (acrylic, wood, leather, paper) and thin metals, leveraging the unique 10.6μm wavelength of CO₂ laser technology for efficient material absorption. It features a 900×600mm engraving/cutting area, with pass-through doors enabling processing of extremely long materials—addressing the limitation of fixed-area machines. Equipped with selectable 80W/100W/120W CO₂ laser tubes (6-month natural life), it achieves a maximum cutting thickness of ≤15mm and offers stepless speed regulation: 0-18000mm/min for cutting and 0-64000mm/min for engraving, balancing efficiency with precision.
Key configurations tailored to CO₂ laser performance include an imported 3-reflector + 1-focus lens set (ensuring stable laser beam transmission), CW3000 industrial chiller (critical for maintaining CO₂ laser tube stability at 0℃-45℃ operating temperature), and Taiwan HIWIN guide rails paired with Leadshine stepper motors (delivering ±0.01mm reset positioning accuracy and 0.025mm resolution). It supports diverse graphic formats (BMP, DXF, AI, etc.) via Ruida control system and is compatible with Windows OS, with an LCD screen + USB interface for easy operation. Weighing 300kg and packaged in export-standard polywood cases, it comes with auxiliary equipment (exhaust fan, air pump, chiller) and optional rotary/up-down modules, making it ideal for signage, packaging, craft, and small-batch non-metallic processing industries.
Quick Detail
- Core CO₂ Laser Traits: 10.6μm wavelength (optimized for non-metallic material absorption); 80W/100W/120W selectable laser power; ≤15mm max cutting thickness.
- Precision & Efficiency: 900×600mm area + pass-through doors (long materials); 0.025mm resolution, ±0.01mm reset accuracy; 0-64000mm/min engraving speed.
- CO₂-Specific Support: CW3000 chiller (laser tube stability); imported lens set (beam integrity); Ruida control (easy CO₂ laser parameter adjustment).
- Fit: Non-metallic processing (signage, crafts); small-batch thin-metal cutting; 3-5 days production lead time.
Technical Parameter
| Model |
QH-9060C |
| Engraving area |
900x600mm(X 900, Y 600) |
| Machine size |
1500x1150x1120mm |
| Cutting speed |
0-18000mm/min |
| Engraving speed |
0-64000mm/min(stepless speed regulating) |
| Laser tube power option |
80w/100w/120w option |
| Natural life of laser |
6 month |
| Laser wave length |
10.6um |
| Resolution ratio |
0.025mm |
| Minimum shaping character |
Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy |
±0.01mm |
| Voltage |
Ac220v±10%,50HZ/60HZ |
| Operating Temperature |
0℃-45℃ |
| Operating humidity |
5%-95% |
| Graphic Format Supported |
BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop |
| Software supported |
Coreldraw,AutoCAD,Photoshop.llustrator etc |
| Lens |
Imported reflect lens(3pcs)+focus lens(1pcs) |
| Guide rail |
High quality tanwan hiwin guiderail |
| Driver type |
Leadshine stepmotor |
| Cutting table |
Aluminum slot/ honeycomb option |
| Cooling sytem |
CW3000 Industrial Chiller |
| Software |
Ruida control system |
| Opearate System |
Win98/Win2000/WinXP/Win 7/vista |
| Interface |
LCD screen with USB interface |
| Max Cutting thickness |
≦15mm |
| Pass through doors |
Allow to cut extremely long materials |
| Packing |
Polywood case for export standard |
| Assistant equipment |
Exhaust-fan,air pump,industry chiller |
| Configuration |
Rotary and up and down |
| Produce time |
3-5days |
| CBM/GW |
3.5M3/300KG |
Advantage
- CO₂ Laser’s Non-Metallic Processing Superiority: The 10.6μm wavelength of CO₂ laser is highly absorbed by non-metals (acrylic, wood, leather)—unlike fiber lasers that struggle with such materials. This enables smooth, burr-free cuts (≤15mm thickness) and fine engraving (2mm Chinese characters/1mm letters), eliminating post-processing and boosting craft/signage production quality.
- Balanced Power & Energy Efficiency: With 80W/100W/120W low-to-medium CO₂ power options (vs. high-power fiber lasers), the machine consumes less energy while meeting small-batch processing needs. The CW3000 chiller further optimizes CO₂ laser tube lifespan (6-month natural life) by preventing overheating, reducing replacement costs compared to uncooled CO₂ systems.
- Flexibility for Long/Irregular Materials: Pass-through doors solve the CO₂ laser’s traditional fixed-area limitation, allowing processing of extremely long materials (e.g., long acrylic strips for signage) without cutting them into segments. Optional rotary modules expand this flexibility to cylindrical non-metals (e.g., wooden poles), making the machine adaptable to diverse craft/industrial needs.
- Precision-Driven by CO₂-Optimized Components: Imported reflect/focus lenses maintain CO₂ laser beam integrity, ensuring 0.025mm resolution—critical for detailed engraving (e.g., intricate patterns on leather). Taiwan HIWIN guide rails and Leadshine steppers complement this by delivering ±0.01mm reset accuracy, ensuring consistent precision across multiple cuts/engravings, a key advantage over low-cost CO₂ machines with poor component quality.
