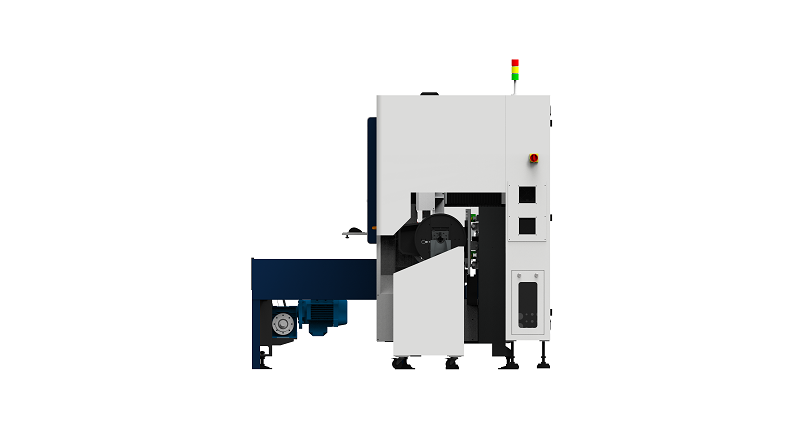

500W 1000W 2000W 3000W Fiber Laser Metal Cutting Machine Side Mounted

Brand Name : QIHAI

Model Number : QH-GA

Certification : ISO, CE

Place of Origin : Foshan, Guangdong, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 Set/month

Delivery Time : 50 days

Packaging Details : wood

Condition : New

Cnc or not : Yes

Graphic format supported : PLT,DXF,AI,BMP,DST

Cutting thickness : Depends,Materials,0-20mm,30mm acrylic,0-15mm

Cooling mode : Water Cooling

Warranty : 1 Year

Product name : Fiber Laser Metal Cutting Machine,150w Metal Co2 Mixed Laser Cutting Machine,AOL metal/carbon steel/brass fiber laser cutting machine for sale,laser cutting machine for acrylic sheet metal stainless steel wood,large format laser cutter laser co2 metal cutt

Laser power : 500W / 1000W / 2000W / 3000W,500-3000W,100W/130W/150W/280W,150W reci,80w/100w/130w/150w

After-sales service provided : Engineers available to service machinery overseas

Color : White,according to client,Required,Blue and white

Contact Now

500W 1000W 2000W 3000W Fiber Laser Metal Cutting Machine Side Mounted 500W 1000W 2000W 3000W Fiber Laser Metal Cutting Machine Side Mounted

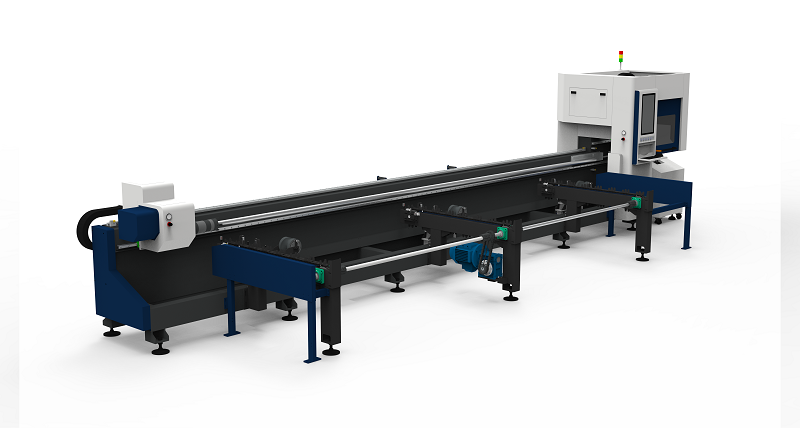

QH-GA Automatic Obstacle Avoidance Tube Cutting Machine Follow-up Support
Description​
The QH-GA-6012 is a dedicated long-tube processing solution designed for medium-to-large batch production, with Automatic Obstacle Avoidance and Follow-up Support as its core performance drivers—ideal for industries like construction trusses, automotive frames, and furniture metal structures that demand safety, precision, and stability for long-tube cutting.
Its Follow-up Support system is engineered to address the key pain point of long-tube sagging: for tubes with lengths ranging from 5500mm to 6500mm (the machine’s maximum tube length capacity), it dynamically adjusts its support position in real time, maintaining alignment with the horizontally mounted lathe’s axis (equipped with a side-mounted chuck) to eliminate deformation caused by gravity.
​
Quick Detail​

Dual Core Features: Automatic Obstacle Avoidance (real-time hazard detection, 0.1s response to prevent collisions); Follow-up Support (dynamic bracing for 5500-6500mm tubes, eliminates sagging).

Key Specs: Model QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes; ±0.03mm axis precision; 1500W-20KW laser power; side-mounted chuck on horizontal lathe.

Fit: Medium-large batch long-tube processing (construction/automotive); safe, precise cutting for 5.5-6.5m tubes.

Product Specifications
Model QH-GA-6012
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 1.8T
Chuck installation on the lathe Side-mounted
Dimensions (L*W*H) 8500*2920*2050mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube
Advantage​

Follow-up Support Guarantees Long-tube Precision: By dynamically adjusting to 5500-6500mm tubes, the Follow-up Support system eliminates sagging—a common cause of ±0.1mm+ cutting deviation in unsupported long tubes. Paired with the machine’s ±0.03mm axis accuracy, this ensures uniform cut quality across the entire tube length, reducing rework rates for large-diameter tubes (up to Φ500mm round/500×500mm square) by 35%-40% compared to machines without follow-up functions.

Automatic Obstacle Avoidance Boosts Safety & Uptime: Unlike standard tube cutters, the real-time detection system responds in 0.1 seconds to hazards (e.g., misaligned tubes during loading, debris in the cutting path), avoiding costly laser head damage and operator risks. This cuts equipment repair downtime by 60% and enables uninterrupted processing of 50+ tubes per shift, critical for meeting tight production schedules in high-volume manufacturing.

Synergy of Dual Features Enhances Workflow Efficiency: The Follow-up Support system works seamlessly with the side-mounted chuck to simplify loading/unloading of 5.5-6.5m long tubes (no overhead lifting required), while Automatic Obstacle Avoidance eliminates time-consuming manual hazard checks before each cut. Together, these features reduce tube changeover and pre-cut preparation time by 25%-30%, accelerating batch processing of both round and square tubes without compromising safety or precision.
