Water Cooling 80w 100w 130w 150w Fiber Laser Metal Cutting Machine High Precision

Brand Name : QIHAI

Model Number : QH-GA

Certification : ISO, CE

Place of Origin : Foshan, Guangdong, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 Set/month

Delivery Time : 50 days

Packaging Details : wood

Condition : New

Cnc or not : Yes

Graphic format supported : PLT,DXF,AI,BMP,DST

Cutting thickness : Depends,Materials,0-20mm,30mm acrylic,0-15mm

Cooling mode : Water Cooling

Warranty : 1 Year

Product name : Fiber Laser Metal Cutting Machine,150w Metal Co2 Mixed Laser Cutting Machine,AOL metal/carbon steel/brass fiber laser cutting machine for sale,laser cutting machine for acrylic sheet metal stainless steel wood,large format laser cutter laser co2 metal cutt

Laser power : 500W / 1000W / 2000W / 3000W,500-3000W,100W/130W/150W/280W,150W reci,80w/100w/130w/150w

After-sales service provided : Engineers available to service machinery overseas

Working area : 1500*3000mm,1500mmX3000mm / 2000mmX4000mm

Contact Now

Water Cooling 80w 100w 130w 150w Fiber Laser Metal Cutting Machine High Precision

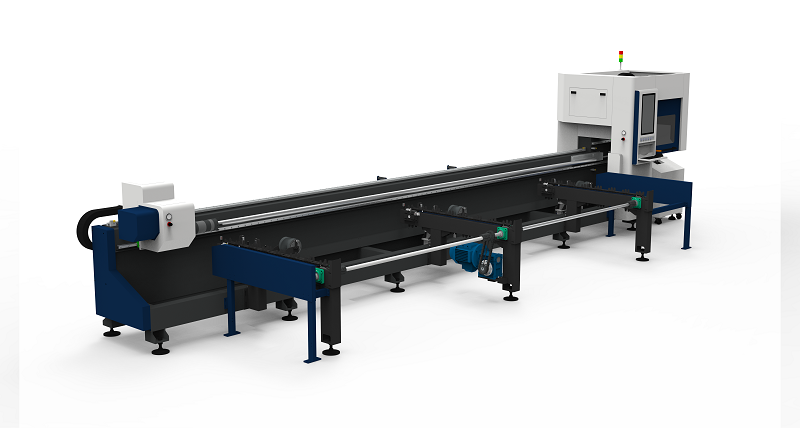

QH-GA Automatic Obstacle Avoidance Tube Cutting Machine Follow-up Support Beveling Cutting
Description​
The QH-GA-6012 is a integrated, safe, and high-precision tube processing solution that integrates three core capabilities—Beveling Cutting, Automatic Obstacle Avoidance, and comprehensive Follow-up Support—tailored for industries like construction trusses, automotive frames, and furniture metal structures requiring both precise beveled tube joints and long-term reliable operation.
Its Beveling Cutting function supports multi-type bevel profiles (V-type, U-type, Y-type) for round tubes (Φ15-500mm) and square tubes (15×15-500×500mm), with adjustable bevel angles (0°-45° in 0.1° increments) and consistent precision aligned with its ±0.03mm X/Y-axis positioning/repositioning accuracy—eliminating secondary beveling processes. Complementing this, the Automatic Obstacle Avoidance system uses high-sensitivity real-time sensors to detect hazards (misaligned tubes, debris in the 5500-6500mm tube length processing path, or laser head blockages), triggering a 0.1-second instant pause to prevent collisions, protecting the side-mounted chuck, laser component, and operators. To ensure long-term productivity, Follow-up Support includes 24/7 technical troubleshooting, regular maintenance guidance, on-demand replacement of beveling-related consumables (e.g., precision nozzles), and free software upgrades for optimized bevel path programming. Weighing 1.8T with dimensions of 8500×2920×2050mm, and powered by a 1500W-20KW laser range (adaptable to thin-walled 0.5mm to thick-walled 20mm+ tubes), it balances heavy-duty performance with safety and post-purchase reliability.
​
Quick Detail​

Triple Core Features: Beveling (0°-45° adjustable, V/U/Y-type, for Φ15-500mm round/15×15-500×500mm square tubes); Automatic Obstacle Avoidance (0.1s hazard response, protects chuck/laser); Follow-up Support (24/7 tech help, bevel consumables, software upgrades).

Key Specs: Model QH-GA-6012; 5500-6500mm tube length; ±0.03mm axis precision; 1500W-20KW laser power; side-mounted chuck.

Fit: Construction/automotive tube processing; needs safe, precise beveling + long-term support.

Product Specifications
Model QH-GA-6012
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 1.8T
Chuck installation on the lathe Side-mounted
Dimensions (L*W*H) 8500*2920*2050mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube
Advantage​

Beveling Precision Backed by Obstacle Avoidance: Unlike standard beveling cutters, its ±0.03mm accuracy ensures uniform bevel quality across 5500-6500mm long tubes, while the Automatic Obstacle Avoidance system prevents collisions (e.g., from misfed tubes) that would ruin bevel edges. This reduces bevel rework rates by 50%-60% and avoids costly laser head repairs, maintaining consistent weld joint fit-up for high-tolerance applications.

Follow-up Support Maximizes Beveling Uptime: The dedicated Follow-up Support addresses beveling-specific needs—fast delivery of precision nozzles (critical for stable bevel gas flow), remote troubleshooting for bevel path programming errors, and maintenance tips for the side-mounted chuck (to preserve clamping stability for beveling). This cuts unplanned downtime related to beveling issues by 40%-50%, ensuring continuous batch processing of 60+ tubes per shift.

Synergy of Three Features Reduces Total Cost: Beveling eliminates secondary grinding (saving labor costs), Automatic Obstacle Avoidance lowers equipment repair costs, and Follow-up Support extends machine lifespan (reducing replacement frequency). For businesses processing mixed round/square tubes (Φ15-500mm/15×15-500×500mm), this synergy avoids investing in separate beveling machines or safety add-ons, slashing overall equipment and operational costs by 30%-35%.
